Hot Sell Thermal Transfer Machine for Heat Transfer Paper

Short Description:

DECAI supplying Thermal Transfer Machine for Heat Transfer Paper,the whole machine adopts pure mechanical mechanism, the pressure is strong and stable, up to 350kgf.

Product Name : Heat Transfer Printing Machine

Specification(mm): 1100*820*2500

Hot printer width: width:<250mm,length:<950mm

Operating Air Pressure: 0.5mpa

Weight(kg): 290

Direction for printing : From right to left

Speed(pcs/h): 700-1000

Package: Plank

Leading time: 8-12 working days

Shipment: By sea

Payment: T/T 50% depoist , the rest should be paid before shipment

Send email to us

Product Detail

Product Tags

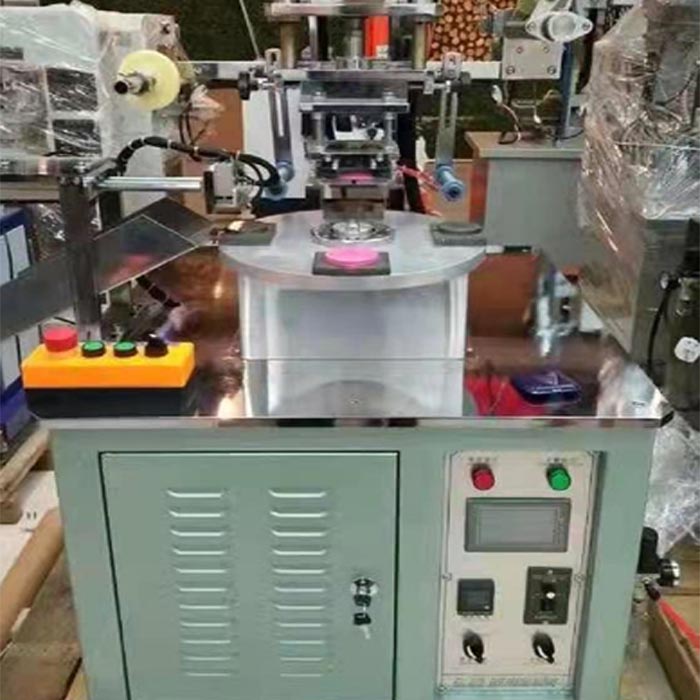

Fully automatic pen holder heat transfer machine

1 Electronic IC integrated controller multifunction program. Hot, gilding.

2 The whole machine adopts pure mechanical mechanism, the pressure is strong and stable, up to 350kgf.

3 Hot stamping pressure, temperature, hot pressing time adjustable. Easy to operate safely and quickly.

The fastest speed is 30-60 PCS/min.

Omron relay, imported contactor electrical accessories.

6 Automatic paper receiving can be adjusted. Taiwan precision motor is adopted.

7 Add photocell (Taiwan Yangming electric eye, 250 high precision action per second) accurate tracking control of thermal transfer paper with positioning point.

8 Hot stamping head height adjustable, hot stamping 300MM workpiece. Taiwan gold solenoid valve precise control, Germany NASS coil stable and durable. All screws are grade 12.9, more stable and durable.

With emergency stop safety protection device to ensure the safety of operators.
